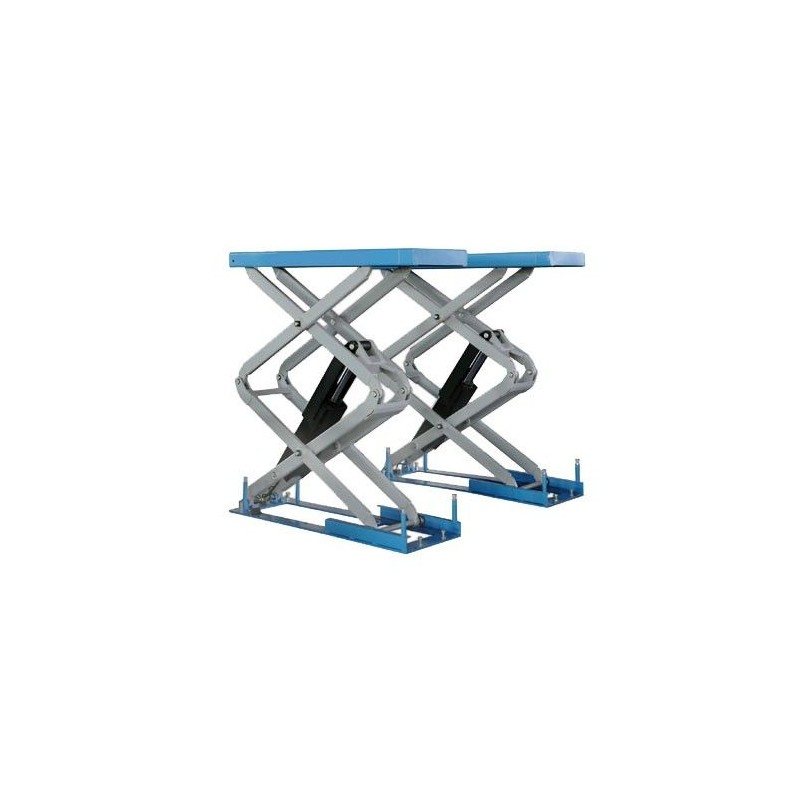

Flush mounted scissor lift, 3t, pull-out ramp, 230V

Reference: STD-7330 220V

Condition: New product

Flush mounted scissor lift, lifting capacity 3t, with an emergency lowering pump, lifting height 2030 mm, pull-out ramp 1540-1740 mm, voltage 230V

More details

Currently it is not available in our stock

Shipping fees

More info

Description

Flush mounted
Pull-out ramp, from 1540mm to 1740mm
24V control unit
With emergency lowering pump

Technical details

Lifting capacity	3t
Lifting height	2030mm
Lifting time	60 seconds
Lowering time	60 seconds
Voltage	230V
Power	2.2kW (230V)
Ramp length	1540-1740mm
Ramp width	550mm
Distance between ramps	800mm
Total length	1540mm
Total width	1900mm
Air pressure	6-8bar
Noise level	80dB
Operating temperature	-10^oC - 40^oC

Tulajdonságok

Carrying capacity	3t
Emelőszerkezet	Süllyesztett
Emelőszerkezet	Nem
Futóműállításra alkalmas	No

Shipping parameters

Product weight	700.00kg
Width	59.00cm
Depth	157.00cm
Height	41.00cm
