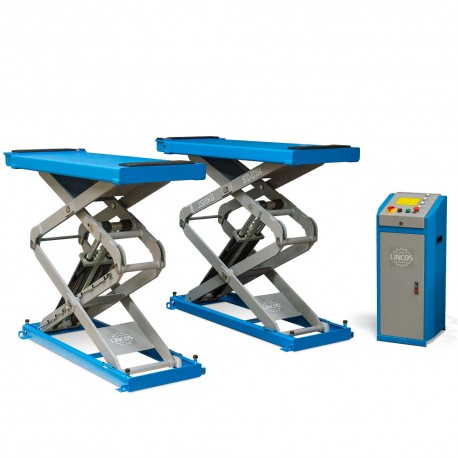

Flush mounted scissor lift, 3.5t
New product
Flush mounted scissor lift, lifting capacity 3.5t, lifting height 2050mm, voltage 230/400V, min. height 220mm.
In Stock
More info
Description
- Flush mounted scissor lift
- Lifting and lowering can be controlled from a 24V control unit
- Four hydraulic cylinders ensure even lifting and lowering
- The whole chassis, wheels, running gear and body of the car is visible and can be reached
- The lifting can be stopped at any height for comfortable working conditions
Technical details
| Capacity | 3,5t |
| Lifting height | 2050mm |
| Lift length | 1375mm |
| Lift length with ramps | 1500-1940mm |
| Ramp width | 570mm |
| Distance beteen ramps | 880mm |
| Minimal height | 220mm |
| Total length | 1940mm |
| Total width | 2020mm |
| Lifting time | 55s |
| Voltage | 230/400V |
| Power | 2,2kW |
Prices
| STD-5335A 230V | STD-5335A 400V | |
|---|---|---|
| Power | 230V / 1 phase / 50Hz | 400V / 3 phase / 50Hz |
| Price | 5 800,00 лв | 5 750,00 лв |
| To cart | - + 0 x = 0 | - + 0 x = 0 |
Shipping parameters
| Product weight | 758.00kg |
| Width | 153.00cm | Depth | 63.00cm |
| Height | 50.00cm |
