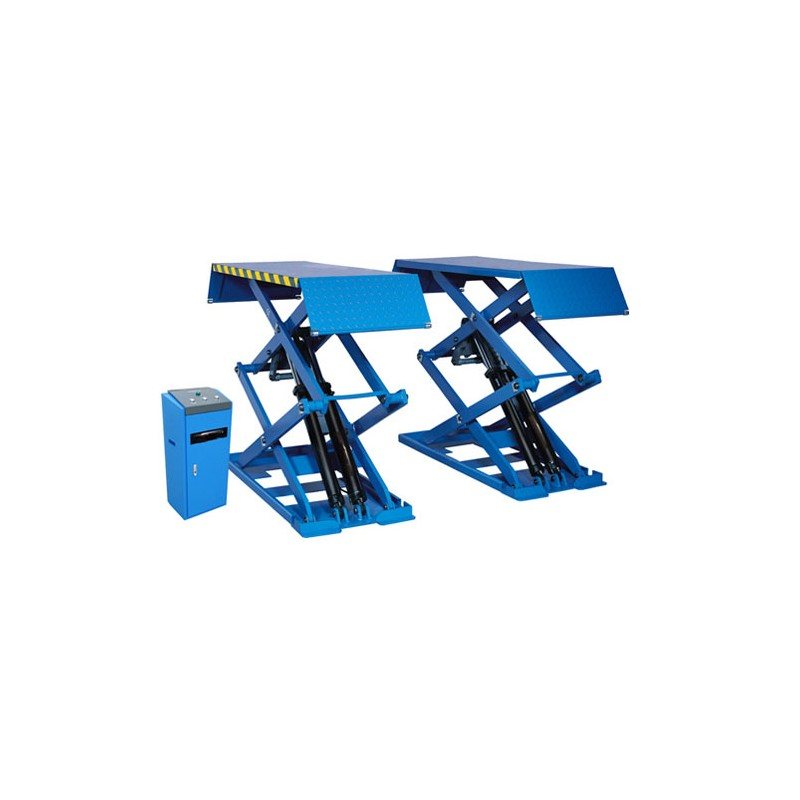

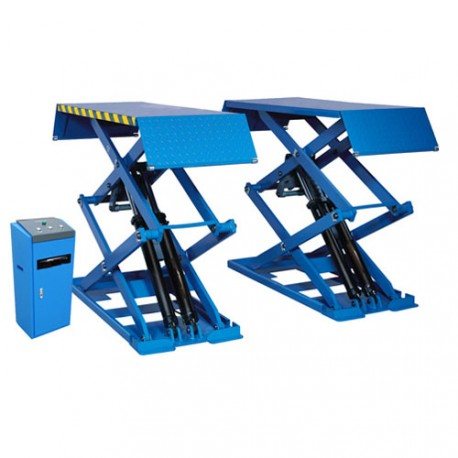

Scissor lift 3t, with built-in loading ramp
U-B30 380V
New product
Scissor lift lifting capacity 3t, lifting height 1850mm, voltage 400V, can be placed on the ground, min. height 110mm, low clearance vehicle can be lifted easily
In Stock
More info
Description
- Can be placed on the floor
- Lifting and lowering can be controlled from a 24V control unit
- Two hydraulic cylinders ensure even lifting and lowering
- The whole chassis, wheels, running gear and body of the car is visible and can be reached
- The lifting can be stopped at any height for comfortable working conditions
Technical details
| Capacity | 3t |
| Lifting height | 1850mm |
| Lift length | 1450mm |
| Lift length with ramps | 2040mm |
| Ramp width | 635mm |
| Distance beteen ramps | 750mm |
| Minimal height | 110mm |
| Total length | 2040mm |
| Total width | 2020mm |
| Lifting time | 55-60s |
| Voltage | 400V |
| Power | 2,2kW |
Shipping parameters
| Product weight | 840.00kg |
