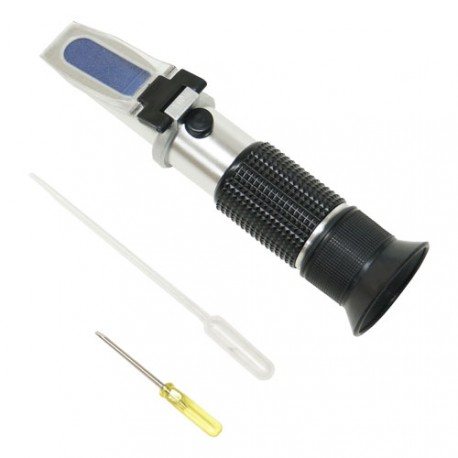

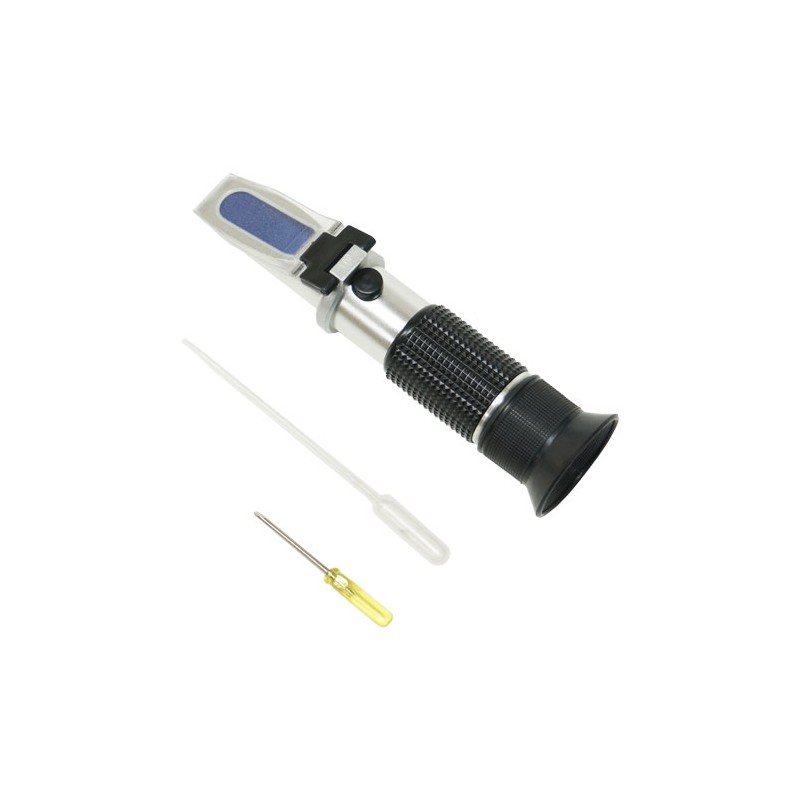

Antifreeze refractometer

Description

• Optical measuring device for antifreeze, windshield washer fluid and battery acid.
• For ethylene glycol and propylene glycol containing antifreeze testing
• Easy calibrating, easy to use
• Adjustable focus

• AdBlue additive: 30%--35%
• Ethylene glycol -50^oC-0^oC
• Propylene glycol -50^oC-0^oC
• Washer fluid -40^oC-0^oC
• Battery fluid 1.100-1.300sg

• AdBlue additive: 0,5%
• Ethylene glycol 5^oC
• Propylene glycol 5^oC
• Washer fluid 5^oC
• Battery fluid 0.01sg

• AdBlue additive: 0,5%
• Ethylene glycol 5^oC
• Propylene glycol 5^oC
• Washer fluid 5^oC
• Battery fluid 0.02sg

• It is very important to keep the device clean to ensure precise measurements. Before and after measurements, wipe the prism and its cover with a clean damp cloth.

• Drip some distilled water on the prism, so that all of the surface is covered. Close the prism cover and, using the enclosed screwdriver, set the zero point. If the light-dark border is aligned with the lower line of the measuring scale, the zero point is set.

• After cleaning, take a sample from the tested fluid, using the enclosed pipette.
• Open the prismcover, and drip enough sample fluid on the prism to cover the surface.
• Close the prism cover and hold the device to the light.
• Read the value through the sight window, if the image is too blurry, correct it by turning.
• The respective scale value is to be read at the light-dark border.
