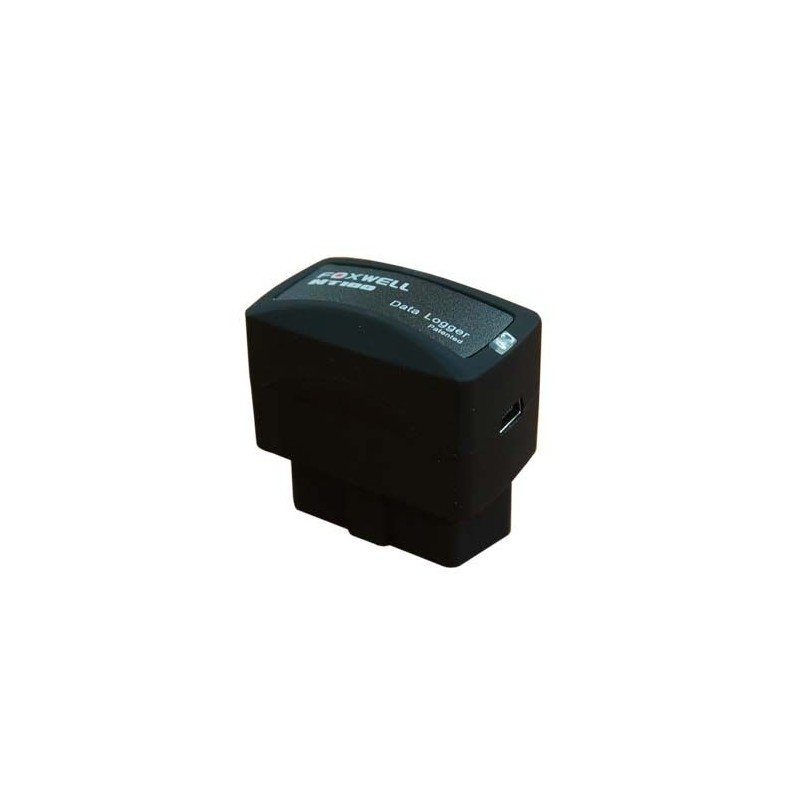

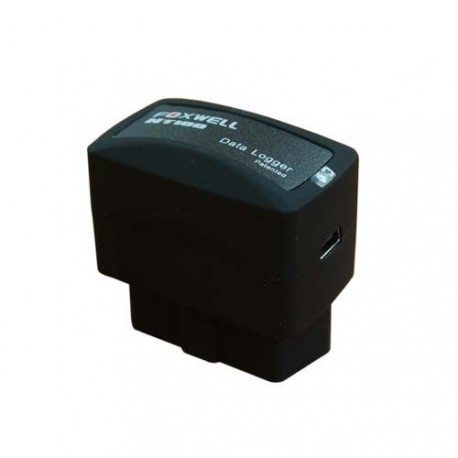

OBDII/EOBD data logger

Description

• Reads both generic and manufacturer specific codes
• For passenger cars, utility trucks and minibuses
• Max. 300 hour memory
• Multilingual
• Free online updates via USB connector

Technical details

• Operating temperature: between -40 °C and 85 °C
• Memory: 8 MB
• Storage capability: max. 300 hours, depending on logging intervals and the number of parameters selected
• Supported protocols: J1859-41,6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
• Sampling Rate: 1s, depending on protocol type
• Time and date: Accurate to +/- 2 seconds per day
• Vehicle Interface: 16-pin OBD connector
• PC Interface: USB 2.0

Accessories

• NT100 user manual
• USB-cable

• It can happen that the code reader connects to the car, but is unable to read. Some models have a suitable connector, but the software is not OBDII/EOBD e.g.: E39 530d
• It can happen that the code reader does not read some trouble codes, in cases where the car has a mixed, not fully OBDII/EOBD software

• An indispensable diagnostic tool that helps with diagnosis and analysis of intermittent engine faults.
• The NT100 data logger continuously logs engine data of every trip you make and watches how your car is being driven.
